SF-2 boundary lubricating bushing,carbon steel plate,copper powder,pom,etc.yellow,low speed,heavy loading.

Product Categories

Anhui IFAGB Hardware Accessories Technology Co., Ltd.

Contact Now

SF-2 boundary lubricating bushing,carbon steel plate,copper powder,pom,etc.yellow,low speed,heavy loading.

Name: SF2 boundary lubricating bushingcarbon steel platecopper powderpometcyellowlow speedheavy loading
Brand: ifagb
Price: 0.1 USD

Brand Name : ifagb

Model Number : sf-2y

Place of Origin : China

MOQ : 1000sets

Price : USD,0.1-2,set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000sets/month

Delivery Time : about 30 work days

Packaging Details : standard packing or custom packing

Contact Now

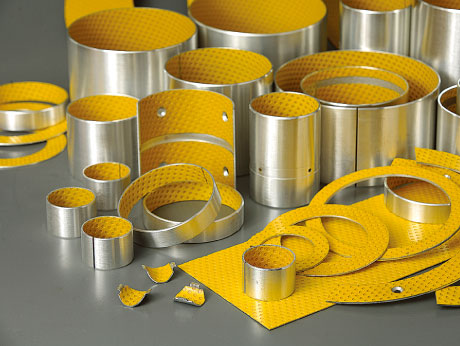

SF-2Y boundary lubrication bearing (yellow material)

QR Code 2018/7/24 Viewed:10

SF-2Y boundary lubrication bearing (yellow material)

SF-2 boundary lubricating bushing,carbon steel plate,copper powder,pom,etc.yellow,low speed,heavy loading.

Product parameters

　　Substrate properties
　　It is suitable for long-term use under boundary lubrication without maintenance. It is recommended that the initial grease lubrication, the oil storage hole on the bearing surface can guarantee the distribution of grease, and the process fueling can greatly improve the service life of the product. Excellent load carrying capacity, low friction factor and good wear resistance, suitable for rotary motion and rocking motion under heavy load and low speed.
　　Material organization
　　1. POM 0.30-0.50mm modified polyoxymethylene, which has good wear resistance and low friction factor even in the case of instantaneous oil shortage. The surface of the bearing has a regularly arranged oil storage pit with a spiral angle. When assembling, it must be coated with lubricating grease.
　　2. The copper powder layer is 0.20~0.35mm, which has good load-bearing capacity and wear resistance. Good thermal conductivity can transfer the heat generated during the operation of the bearing. The composite material can penetrate into the gap of the copper powder ball to improve the bonding strength.
　　3. Low carbon steel, which provides bearing capacity and heat transfer.
　　typical application
　　Recommended for intermittent lubrication or boundary lubrication conditions such as automotive pedal assemblies, balance bushings, brake calipers, steering kingpin bushings and truck tail bushings, etc., generally used in drilling machine spindles, grinding machines and milling machines, etc. Agricultural machinery gearboxes, pedals, etc.

　　Anhui IFAG Hardware Accessories Technology Co., Ltd. provides you with: oilless bearings, sliding bearing, self-lubricating bearings, composite bearings;

　　Website: www.ifagb.com

Contact us

　　Anhui IFAG Hardware Accessories Technology Co., Ltd.

　　Contact: Mr. Li

　　TEL:182-9798-3468,0551-66559828

　　URL:www.ifagb.com

　　mailbox:3285504806@qq.com

　　WeChat:18297983468

　　ＱＱ:3285504806

　　Address: No. 1188, Huaihai Avenue, Xinzhan District, Hefei, Anhui, China

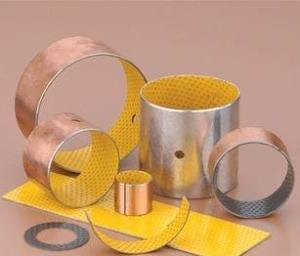

SF-2 boundary lubricating bushing,carbon steel plate,copper powder,pom,etc.yellow,low speed,heavy loading. Images
