Bimetallic boundary

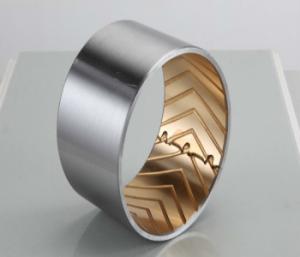

JF-930 bimetal bearing (environmentally friendly) Product parameters
| Product Name: |
Sliding Bush Bearing |
| Material: |
Lead Free Copper Alloy Sintered Layer |
| Alloy Hardness: |
HB 60-100 |
| Type: |
Environmentally Friendly Bimetal Bearing |
| Shear Strength: |
170N/mm |
| Application: |
Engine Connecting Rods |
Substrate properties
The sintered lead-free copper alloy layer of the steel substrate has high load capacity and good fatigue resistance, and is suitable for dynamic load and impact load working conditions, especially in the case of reciprocating motion. Oil tanks or oil pockets designed as needed can store lubricants at the beginning of assembly to extend the lubrication cycle of the bearings. The lead-free friction layer material meets EU Directive 2011/65/EU.
Material organization
1. Lead-free copper alloy sintered layer: It has good wear resistance and excellent load-bearing capacity, low friction factor and good anti-seizure performance.
2. Carbon steel substrate: Provide bearing capacity and good heat transfer.
Technical Parameters
| Bearer |
Static bearing |
250N/mm |
Alloy hardness |
HB 60-100 |
| Dynamic bearer |
140N/mm |
| Operating temperature |
-40℃~+250℃ |
| Friction factor |
0.05~0.12 |
| High line speed (lubrication) |
Max.Speed |
2.5m/s |
Thermal Conductivity |
60W(m*k)-1 |
| PV (lubrication) |
Max.PV |
2.8N/mm*m/s |
| Shear strength |
Shear strength |
170N/mm |
| Thermal expansion coefficient |
14*10-6K-1 |
typical application
JF-930 bimetal bearing (environmentally friendly) is mainly used in medium-duty medium-speed oil lubrication or grease lubrication. Typical applications include engine connecting rods, pin shafts, engineering machinery chassis rollers, carrier rollers, guide wheels, hydraulic cylinder guide sleeves, cylinder earrings, logistics machinery, and agricultural machinery.
