FB092 bronze injection hole bearing Product parameters
Substrate properties
1. Easy to install and lubricate;
2. Strong carrying capacity;
3. The type of inner hole reworkable can be customized as needed;
4. Good thermal conductivity;
5. Has good chemical resistance;
6. Compared with the common Iver Aiji-090, it has a longer service life and a longer lubrication cycle;
7. Free choice of different lubricants;
9. Oil holes can absorb dust and particles generated by friction.
Special Note: Pre-lubrication must be performed during initial installation.
Material organization

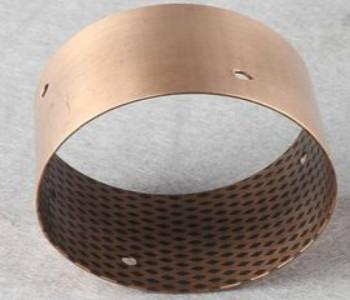

The bushing is made of CuSn8 bronze as a base material, and has an economical bearing with high bearing capacity and good wear resistance. The standard product working surface is covered with regular oil holes, which can easily form an oil film during the initial movement to reduce the initial friction factor. Mainly used in high-load low-speed applications such as agricultural machinery and construction machinery.
Technical Parameters
PV (lubrication)
| Bearer |
Static bearing |
120N/mm |
Elongation |
40% |
| Dynamic bearer |
40N/mm |
| Operating temperature |
-100℃~+200℃ |
| Friction factor |
0.08~0.25 |
| Line speed (lubrication) |
Max.Speed |
2.5m/s |
Thermal Conductivity |
58W(m*k)-1 |
| Max.PV |
2.8N/mm*m/s |
Thermal expansion coefficient |
18.5*10-6K-1 |
| tensile strength |
Tensile strength |
450N/mm |
|
|
typical application
Widely used in lifting equipment as well as construction machinery, automotive industry, tractors, trucks, tool molds and mining equipment. Products that can be processed include bushings, bushings, flanged bushings, thrust washers, and more.
